Welded top channel and axle on landing gear.

 Fabricated u-channel for top of landing gear legs.

 Fabricated and welded straps around landing gear top bushings.

Welded top of landing gear legs.

 Cut snap ring groves in landing gear strut shock.

 Turned strut cylinder to size.



 Fabricated and tacked in place front landing legs.

 Fabricated landing gear leg fittings and pivot bushings.



 Moved and fixtured fuselage on work bench to prepare for landing gear fabrication.

 Welded strut mounts in place.

 Finished welding fittings for gear legs. Fabricated center strut mounts.

 Welded fittings for landing gear legs.

 Welded landing gear clusters.

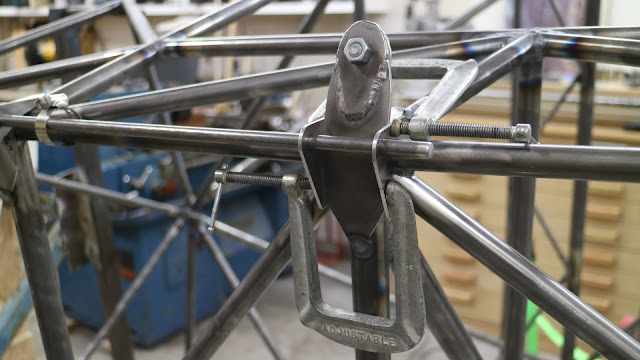

Tacked landing gear brackets in place on fuselage.

 Continued fabricating landing gear brackets.

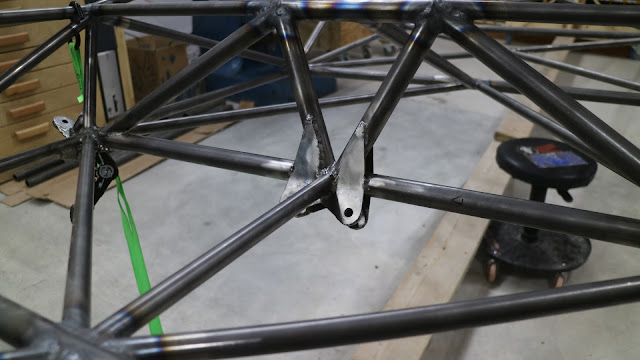

 Fabricated brackets for landing gear.

Started  welding fuselage clusters. Finished on 2-23.

Welded tail post and tail wheel receiver.



Removed fuselage from table and placed it on rotisserie.

 Fabricated and installed tubes supporting firewall.

  Fabricated and installed left side tubes above front door opening.

 Fabricated and installed left side tubes above front door opening.
